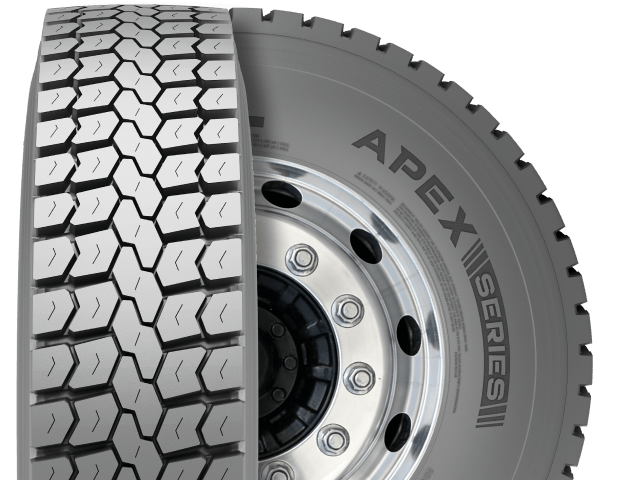

Premium open-shoulder driving design for long-haul driving axles.
Strong horizontal tread pattern delivers excellent driving performance.
Open shoulder design excels at tread cleaning, with reinforced shoulders enhancing crown stiffness to reduce abnormal wear and cracks.
Wide, deep tread pattern and specialized compounds lengthen driving range.
| WHEEL DIAMETER | SIZE | L.S | PARTS NUMBER | MAX PSI | SINGLE TIRE MAX LOAD LBS | DUAL TIRE MAX LOAD LBS | MEASURING RIM | APPROVED RIM WIDTH | OD INCH | SW INCH | TD 32ND | SIDEWALL |
| 22.5" | 11R22.5 | 14PR 144/142M | PDTBR59 | 105 | 6175 | 5840 | 8.25 | 7.50,8.25 | 41.94 | 11.00 | 24.8 | BLK |
| 11R22.5 | 16PR 146/143M | PDTBR60 | 120 | 6610 | 6005 | 8.25 | 7.50,8.25 | 41.94 | 11.00 | 24.8 | BLK | |
| 24.5" | 11R24.5 | 14PR 146/143L | PDTBR72 | 105 | 6610 | 6005 | 8.25 | 7.50,8.25 | 43.94 | 11.00 | 24.8 | BLK |
| 11R24.5 | 16PR 149/146L | PDTBR78 | 120 | 7160 | 6610 | 8.25 | 7.50,8.25 | 43.94 | 11.00 | 24.8 | BLK |
*Every effort has been made to verify the accuracy of the listed Information.
Transamerica Tire cannot be held responsible for any discrepancies,and as such the information should be considered as approximate.
-
-
tread designStrong horizontal tread pattern delivers excellent driving performance. -
tread designWide, deep tread pattern and specialized compounds lengthen driving range.
